76mm E/P SASHLOCK CASE SS ZUKS76EP

Description:

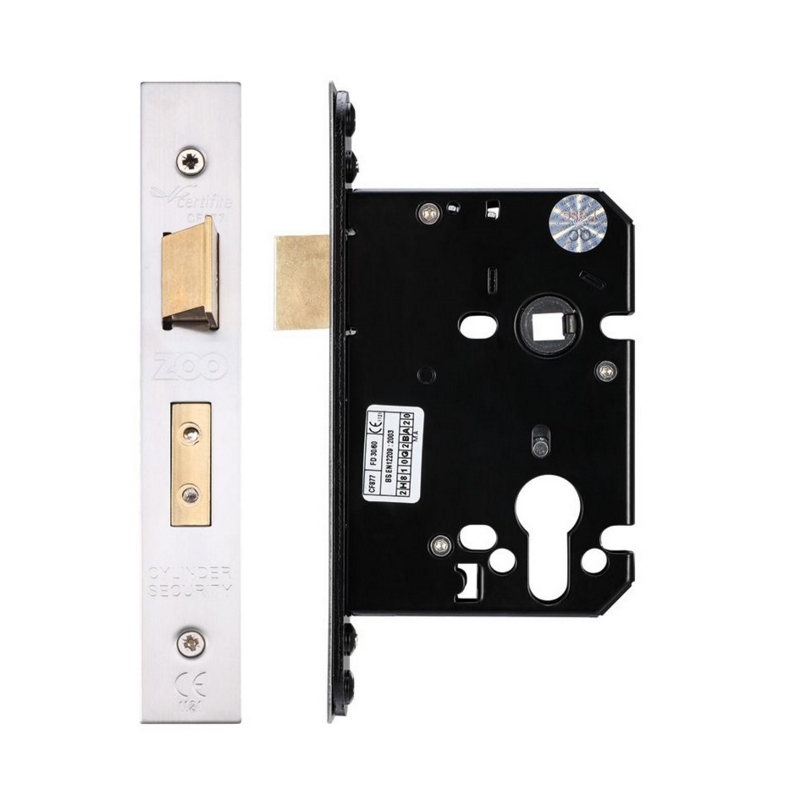

This is Zoo Hardware's 76mm or "3 inch" case depth euro profile mortice sashlock with a stainless steel forend and strike. These quality sashlocks are perfect for exterior and internal locking doors where an appropriate lever on plate handle is to be used.

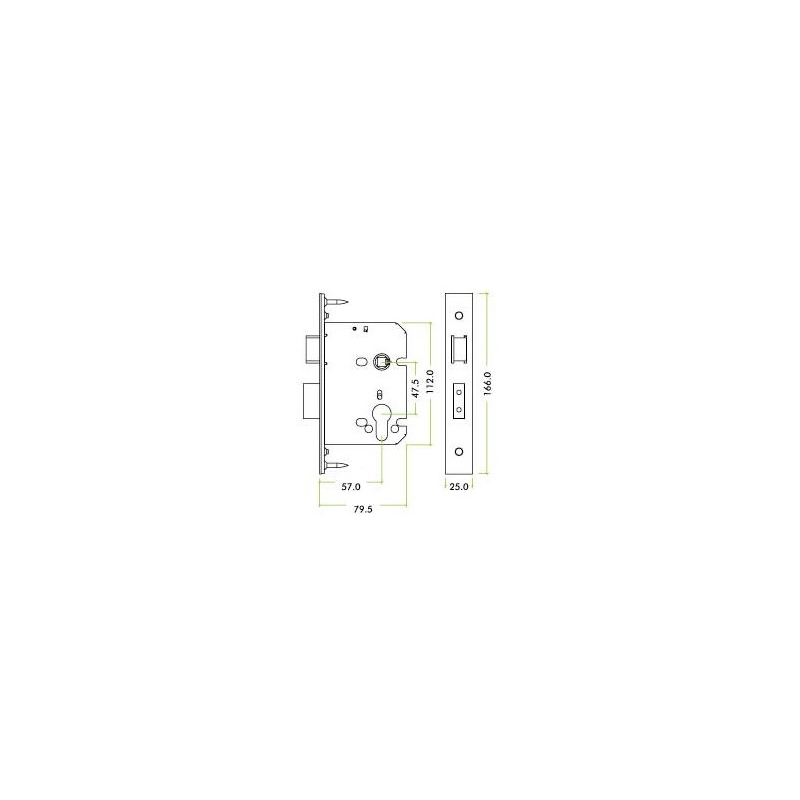

The latch is operated by a lever handle from either side. The dead bolt is operated by key from either side if using a double cylinder or the key from outside and thumbturn inside if using a cylinder and turn. It is pierced to take bolt through fixings if using levers on roses and separate escutcheons. The case depth is 79.5mm including faceplate and it has a backset of 57mm. Having 47.5mm centres it can be used with levers on a backplate with similar dimensions.The faceplate is 166 x 25mm and there is a plastic back box to fit behind the strike in the frame. It can be used in FD30 and FD60 fire doors when fitted with the correct intumescent kit, and comes with fixings for wooden doors.

• 3" euro profile sashlock case with stainless steel faceplate and strike
• Solid brass latch and deadbolt
• Short travel latch
• Includes plastic back box for behind the strike
• 57mm backset
• To BS EN 12209 Certifire CF877
• Relevant intumescent kit must be used for FD30 or FD60
