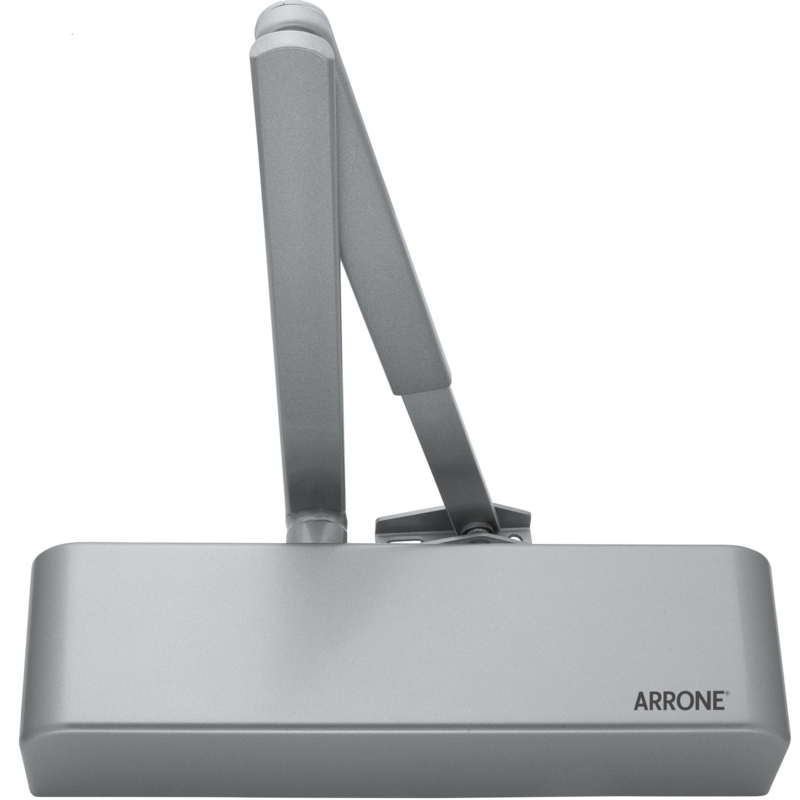

ARRONE EN 2-4 OVERHEAD CLOSER WITH BACKCHECK SILVER AR1500SE

Description:

The Hoppe / Arrone AR1500SE closer in a highly versatile unit, able to close doors weighing as much as 80KG and 1100mm in width - impressive for a size 2 to 4! This powerful overhead door closer comes with an attractive radius edged cover and can be used on on FD30, FD60, FD90 and FD120 timber doors, not only reliably closing them each and every time but thanks to its spring tension strength adjustment, valve adjustable sweep and latching speeds and its backcheck facility it will do so smoothly and quietly, as well as preventing the door being thrown open by over-enthusiastic users.

Technical Details

• Radiused cover
• Power size 2 to 4 adjustable by spring tension
• Maximum door width 1100 mm
• Maximum door weight 80 kg
• Fig 1, Fig 6 and Fig 61 fixing positions
• To BS EN 1154:1997
• Tested to BS EN 1634 Part 1.
• FD30, FD60, FD120 timber fire doors
• 240 minutes on steel fire doors.
• CE Marked: 1121
• Certifire Approved
• Length 255mm
• Width 67mm
• Depth 53mm
