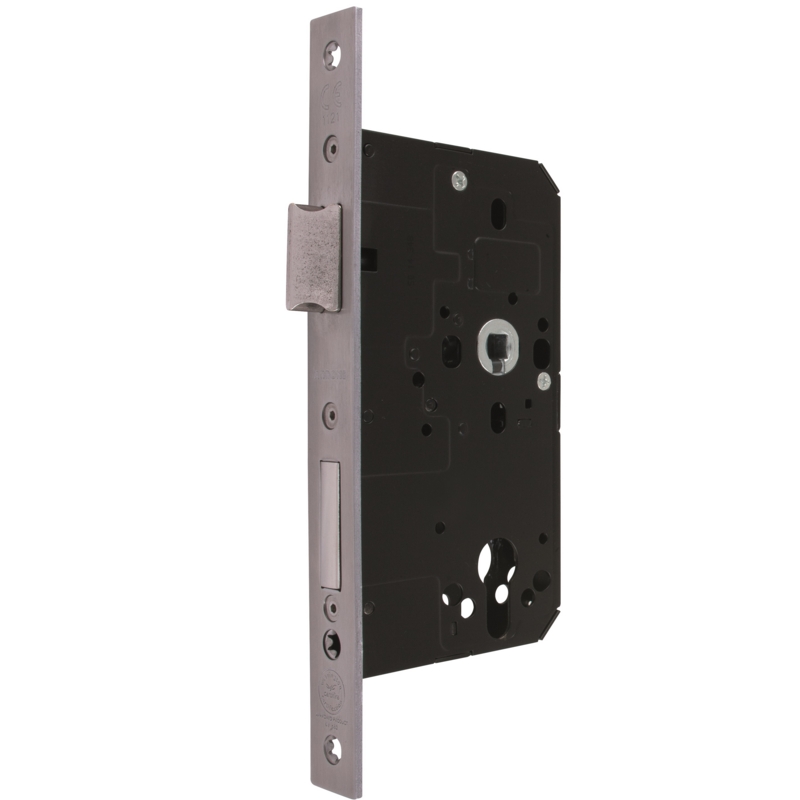

DIN STANDARD EURO PROFILE E/P SASHLOCK CASE AR910-S-60-SSS

Description:

The DIN standard euro profile sashlock is one of the more common locks on the market today, often found on the doors to offices, classrooms, shops, and even some homes. Thanks to the wider spacing of the handle and lock the door furniture is separated, which gives a nicely uncluttered appearance as well as making it easier to access the lock for those with issues surrounding dexterity. The Hoppe AR910 represents a high level of quality at a modest price point and is supplied with its fixings as well as a set of templates to guide the installer to a neat, professional finish.

• CE and UKCA marked and Certifire approved
• Tested to BS EN 1634-1. Assessed for use on 30, 60, 90 and 120 minute timber fire doors and 240 minutes steel fire doors.
• Deadbolt Projection -  21 mm
• Tested to BS EN 12209 and BS EN 1634-1
• Meets dimensional recommendations of BS 8300 and Approved Document M for locks
• Pierced for bolt through fixings

IMPORTANT INFORMATION:
The AR910 series lock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained.

Case depth: 88mm
Backset: 60mm
Case height: 165mm
Centres: 72mm
Forend length: 235mm
Forend width: 24mm
