DOC M PACK WHITE 8000

Description:

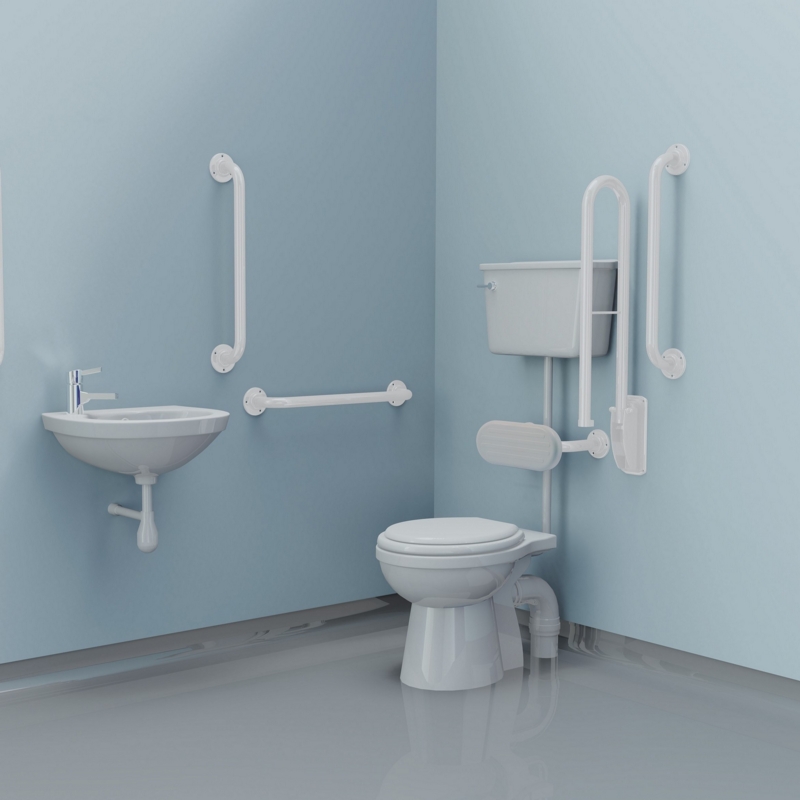

Document M pack comprising double arm hinged support rail, back rest and three grab rails. Finished in white.

Support rail
35mm tubular construction for superior strength
Hinged rails are tested to 170kg in vertical and 45 degree positions.
Die-cast Aluminium Backplate for strength and rigidity.
Backplate bolt holes are drilled for M8 Bolts.
Dimensions: 760mm

Backrest rail
35mm tube diameter for superior strength
Strong tubular construction with robust welded flanges for lasting strength and performance
Fixing holes to fit size 8 screws
Dimensions: 240 x 400 x 240mm

Grab rail
35mm tube diameter for superior strength
Strong tubular construction with robust welded flanges for lasting strength and performance.
Fixing holes to fit size 8 screw
Dimensions: 600 x 35mm
