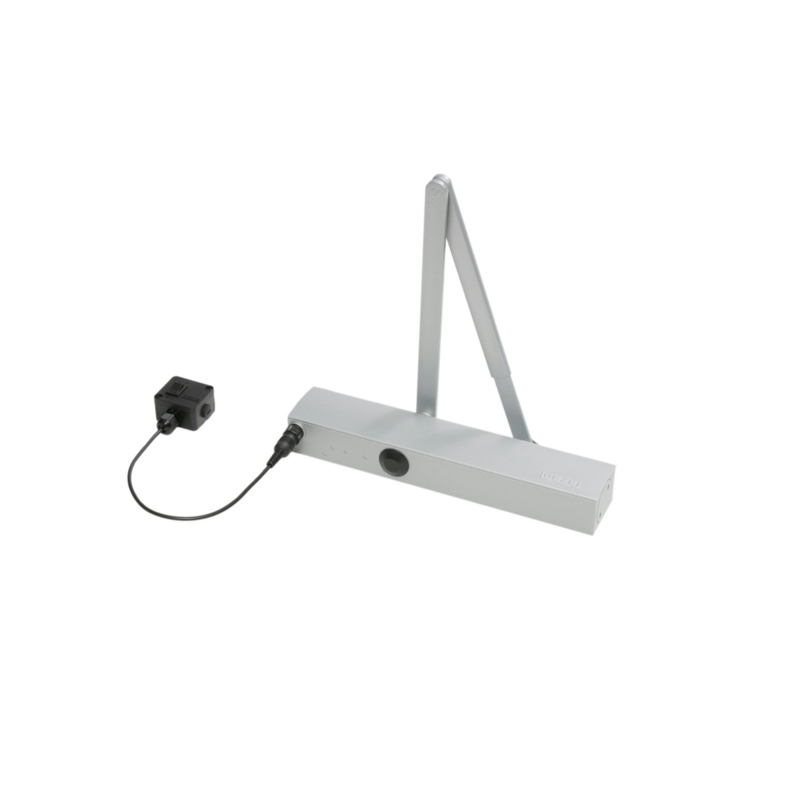

GEZE TS4000E 1-6 ELECTRIC HOLD OPEN CLOSER STANDARD ARM

Description:

When a customer needs doors which are held open most of the time but which need to be closed when the fire alarm goes off, we recommend the Geze TS4000ECB. Thanks to its internal electro-magnetic hold open mechanism your doors can be held open without having to fit wall magnets or armature plates, leaving your doors clean and uncluttered.

The Geze TS4000E (24 V DC) overhead door closer features an electro-magnetic hold-open device with variable adjustment between 80° and 175° in accordance with EN 1155, with the regular closing functions successfully tested to En1154. It is approved for use with left-hand and right-hand single-action doors with a door leaf width of up to 1400 mm and for installation on fire and smoke protection doors. In the event of a fire or power failure, the hold-open device is activated and the door closes
securely.

The size 1-6 closing force in accordance with EN 1154, with visual closing force display, and the thermo-constant closing speed can be conveniently adjusted from the front; the latching action is adjusted by means of the link arm.

Product features
- Closing force in accordance with EN 1154 1 - 6
- Leaf width recommended up to 1400 mm
- Same version for DIN left and DIN right
- Supply voltage 24 V DC
- IP rating IP 43
- Door closer tested in accordance with EN 1154
- Hold-open device tested in accordance with EN 1155
- Suitable for fire protection doors
- Mounting plate with hole pattern acc. to EN 1154 Supplement 1

- Length 325 mm
- Installation depth 46 mm
- Height 60 mm

Functions
- Adjustable closing force with variable adjustment
- Adjustable closing speed
- Adjustable latching action via link arm
- Integrated back check
- Safety valve as protection against vandalism d
- Thermo-constant valves d
- Integrated hold-open device Electric
- Hold-open angle 80°-175°
- Hold-open device can be overridden
