Prices:
NOT DIN

STRONGBOLT EURO SASHCASE 75 SS JL22EUS-SS-3.0

Part Code:

L19777

Description:

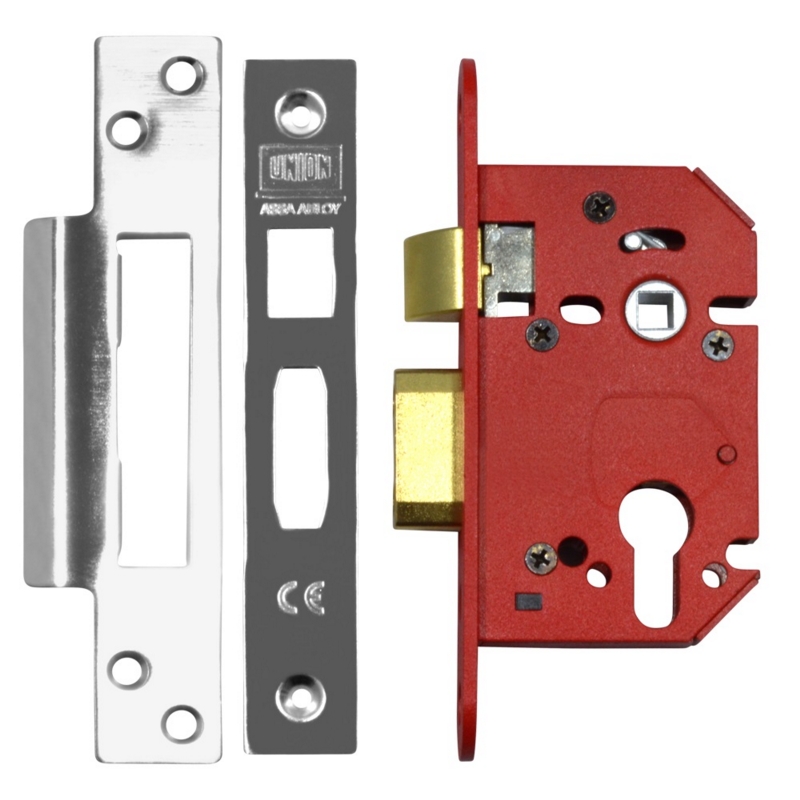

Union StrongBOLT 3" euro profile sashlock case only. Suitable for timber doors up to 54mm thick and for use with a euro profile cylinder. Complete with satin stainless steel and strike, plus all fixings.

- CE marked and Certifire approved - suitable for use on fire doors with relevant intumescent kit - see important information below.
- Tested to BS EN 12209:2003
- Anti-saw security features for resistance against attack
- Chamfered bolt design increases the performance of the lock under side load testing.
- Radius inner forend for ease of installation
- Deadbolt locked or unlocked by the cylinder key or turn from either side
- 14mm deadbolt for secure positive deadlocking
- Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
- Hardened steel pins provide resistance to attack from sawing
- Radius plastic splinter guard for easy installation and a professional finish

IMPORTANT INFORMATION:
Requires 1mm Mono Ammonium Phosphate around all surfaces of lock case and 2mm beneath strike and faceplate for FD30, twice that for FD60. We stock the dedicated intumescent protection to suit this lock and will require ordering seperately. Click here to order.

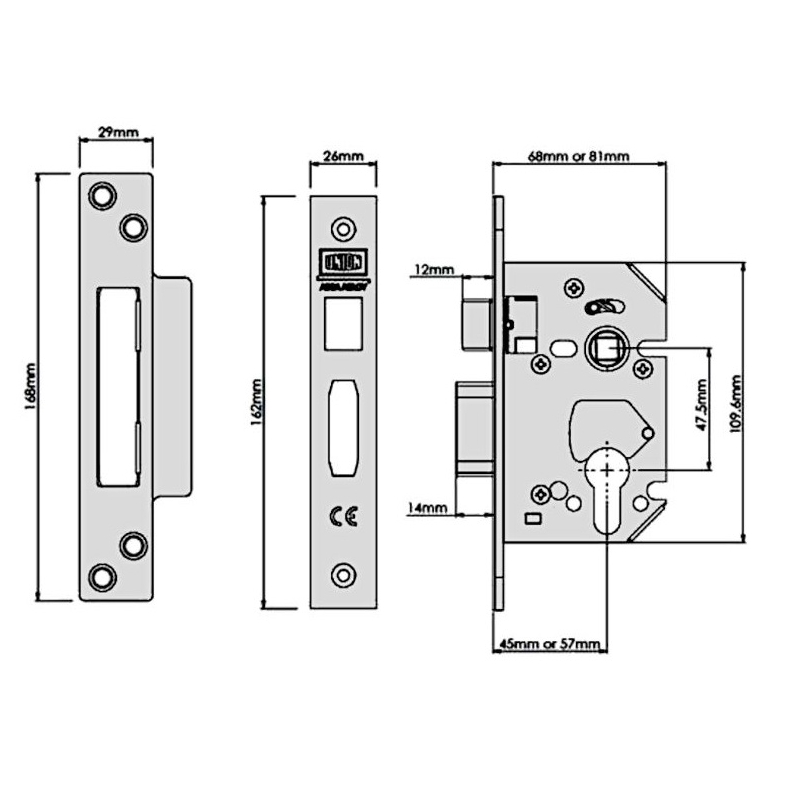

Case depth: 81mm
Backset: 57mm
Case height: 107mm
Centres: 47.5mm
Forend length: 162mm
Forend width: 26mm
Strike plate length: 168mm
Strike plate width: 26mm

RRP £29.14
£21.85
Inc VAT
Saving 25%
Pack Size: 1
