UNION STRONGBOLT JL22EUS 64mm E/P EURO PROFILE SASHLOCK PB

Description:

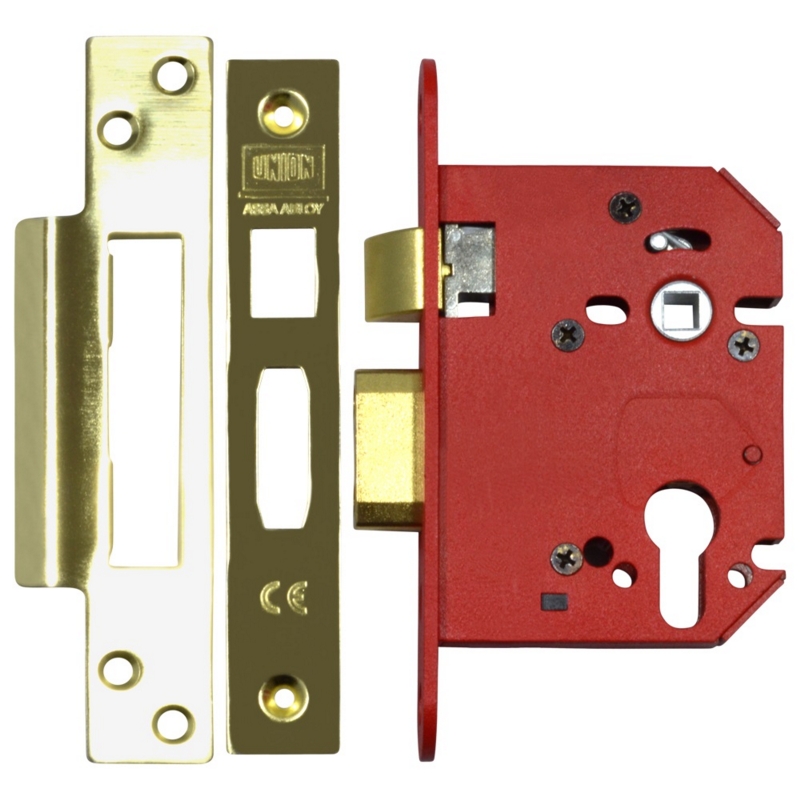

Union StrongBOLT 2.5" euro profile sashlock case only. Suitable for timber doors up to 54mm thick and for use with a euro profile cylinder. Complete with brass forend and strike, plus all fixings.

• CE marked and Certifire approved - suitable for use on fire doors with relevant intumescent kit - see important information below.
• Tested to BS EN 12209:2003
• Anti-saw security features for resistance against attack
• Chamfered bolt design increases the performance of the lock under side load testing.
• Radius inner forend for ease of installation
• Deadbolt locked or unlocked by the cylinder key or turn from either side
• 14mm deadbolt for secure positive deadlocking
• Can be installed in the many UK mortices without the need for additional carpentry or spoiling the edge of the door
• Hardened steel pins provide resistance to attack from sawing
• Radius plastic splinter guard for easy installation and a professional finish

IMPORTANT INFORMATION:
We stock the dedicated intumescent protection to suit this lock and will require ordering seperately.

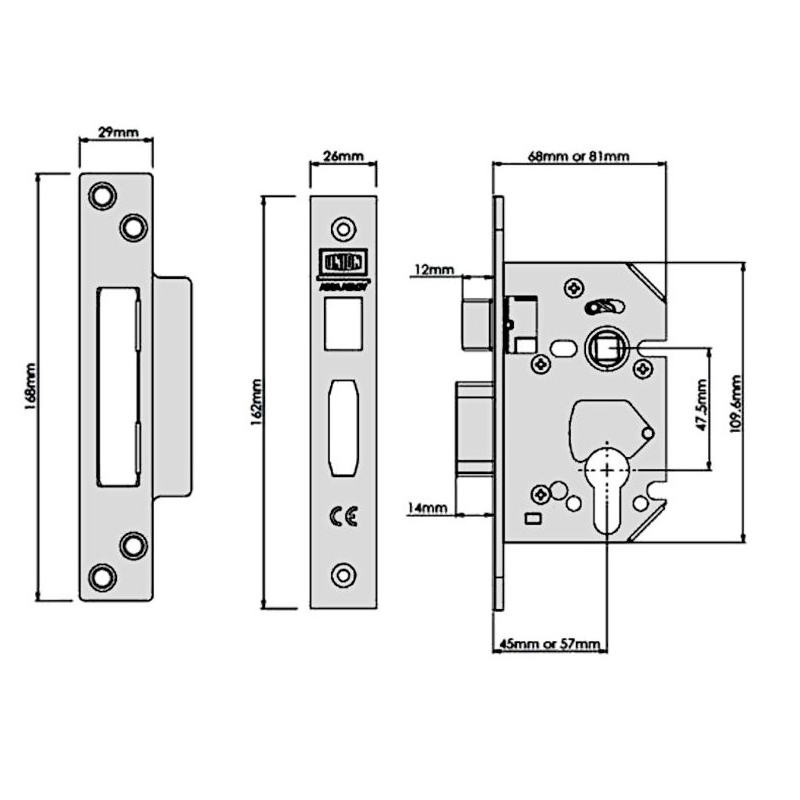

Case depth: 68mm
Backset: 44mm
Case height: 107mm
Centres: 47.5mm
Forend length: 162mm
Forend width: 26mm
Strike plate length: 168mm
Strike plate width: 26mm
