ZOO EURO PROFILE DEADLOCK CASE E/P 76mm SSS ZUKD76EPSS

Description:

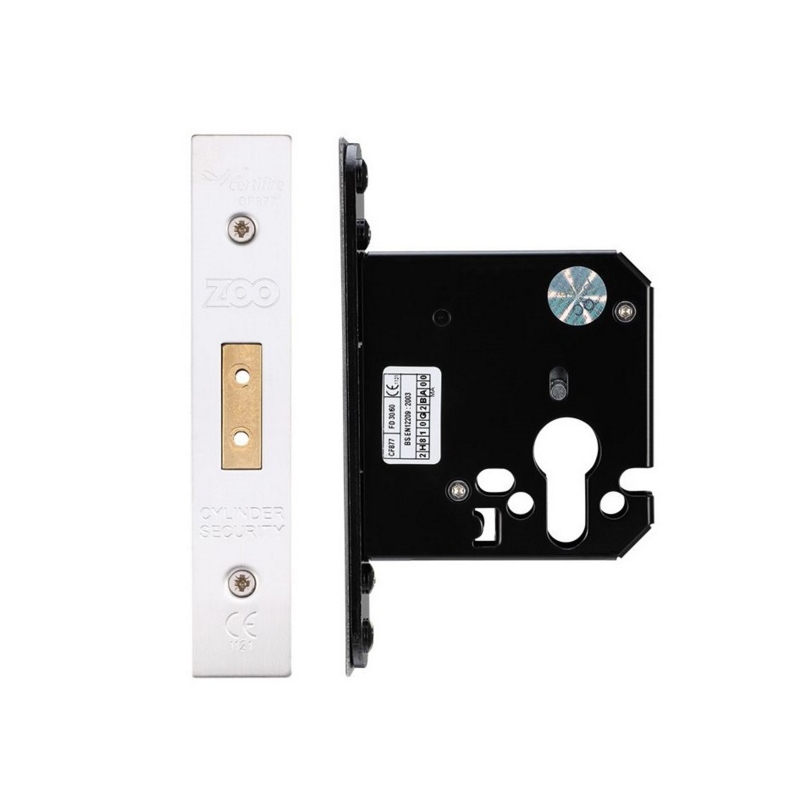

The Zoo Hardware Euro Profile mortice deadlock case with satin stainless steel forend & strike comes with all fixings for timber doors. It is operated by key from both sides if a double cylinder is fitted or by key outside and thumbturn inside if a single cylinder and turn is preferred. It can be fitted to a fire door of either FD30 or FD60 if the relevant intumescent kits are used.

• BS EN 12209 : 2003 Grade 2
• Solid brass deadbolt
• Sintered steel follower
• Includes plastic back box
• Suitable for domestic and commercial application
• Certifire approved for 30 and 60 minute doors - CF877

IMPORTANT INFORMATION:
The ZUKD76EPSS euro profile deadlock case has been successfully fire tested with the use of an intumescent kit. The supply and fitting of this intumescent kit is essential to the products compliance with the fire test and CE marking evidence it has gained.

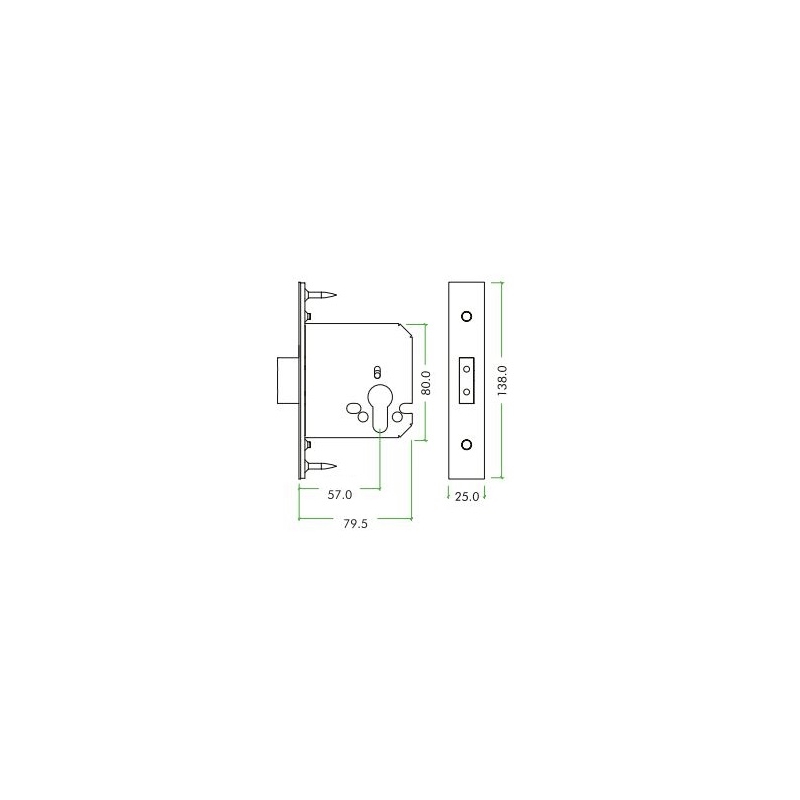

Case depth: 79.5mm
Backset: 57mm
Case height: 80mm
Forend length: 138mm
Forend width: 25mm
