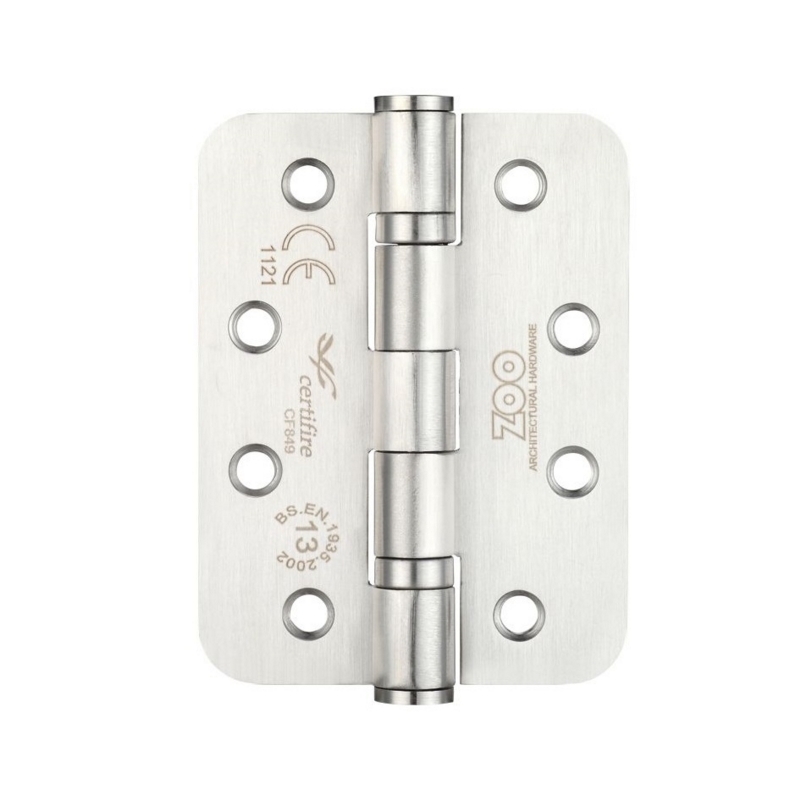

ZOO GRADE 13 102 x 76mm HINGE B/BEARING RADIUS SSS ZHSS243RS

Description:

If you're looking to save time hanging fire doors on site, a radius corner hinge is much easier to fit using a router and will help shave down those valuable minutes.

Zoo Hardware stainless steel Grade 13 radiused ball bearing hinges are suitable for commercial and domestic applications on doors and fire doors up to 120kg in weight. Satin stainless steel finish to suit the rest of your door and window hardware, and come complete with all fixings. They have been tested for use on FD30 and FD60 fire doors when used with appropriate intumescent hinge pads and, thanks to their radiused corners, are ideal for fitting with a router.

Technical details

• ZHSS243RS

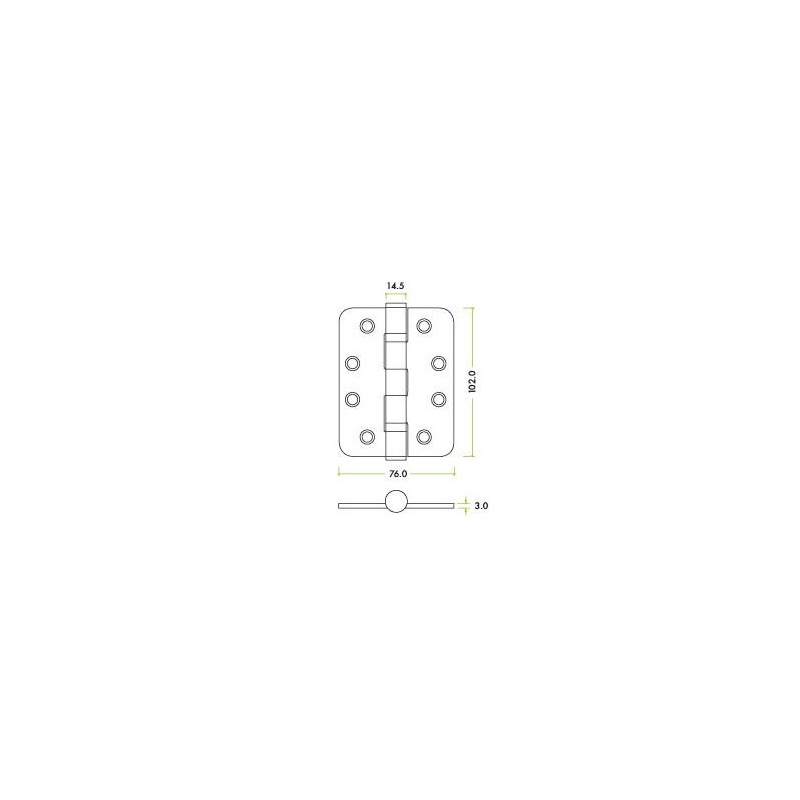

• 102 x 76 x 3mm (4" x 3")
• Radius corners
• Grade 201 stainless steel
• CE & UKCA marked and CERTIFIRE approved
• CE Grade 13 tested: BS EN 1935

IMPORTANT INFORMATION:
The ZHSS243 hinges have been successfully fire tested with the use of intumescent pads. The supply and fitting of these intumescent pads are essential to the products compliance with the fire test and CE marking evidence they have gained.
